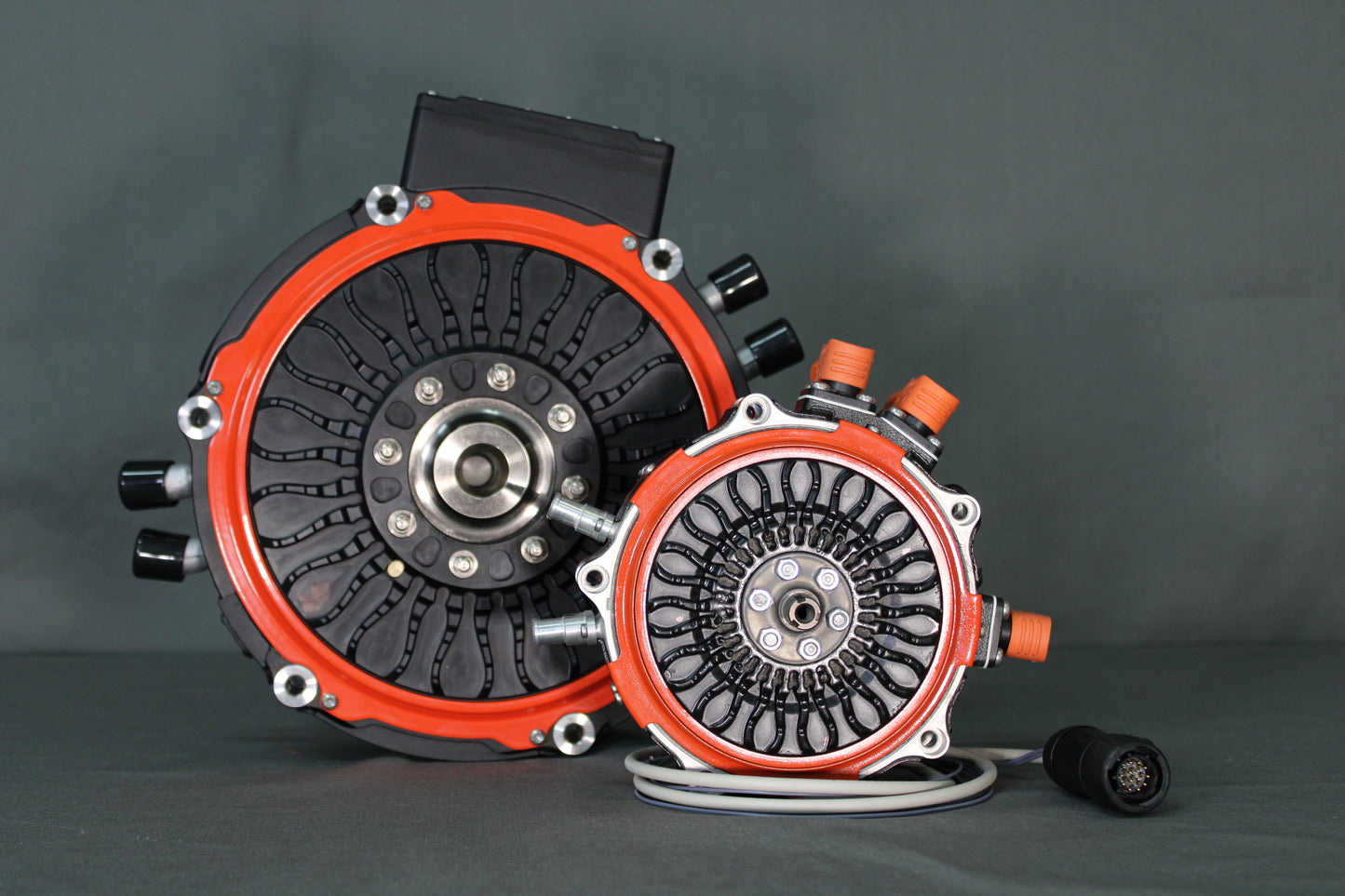

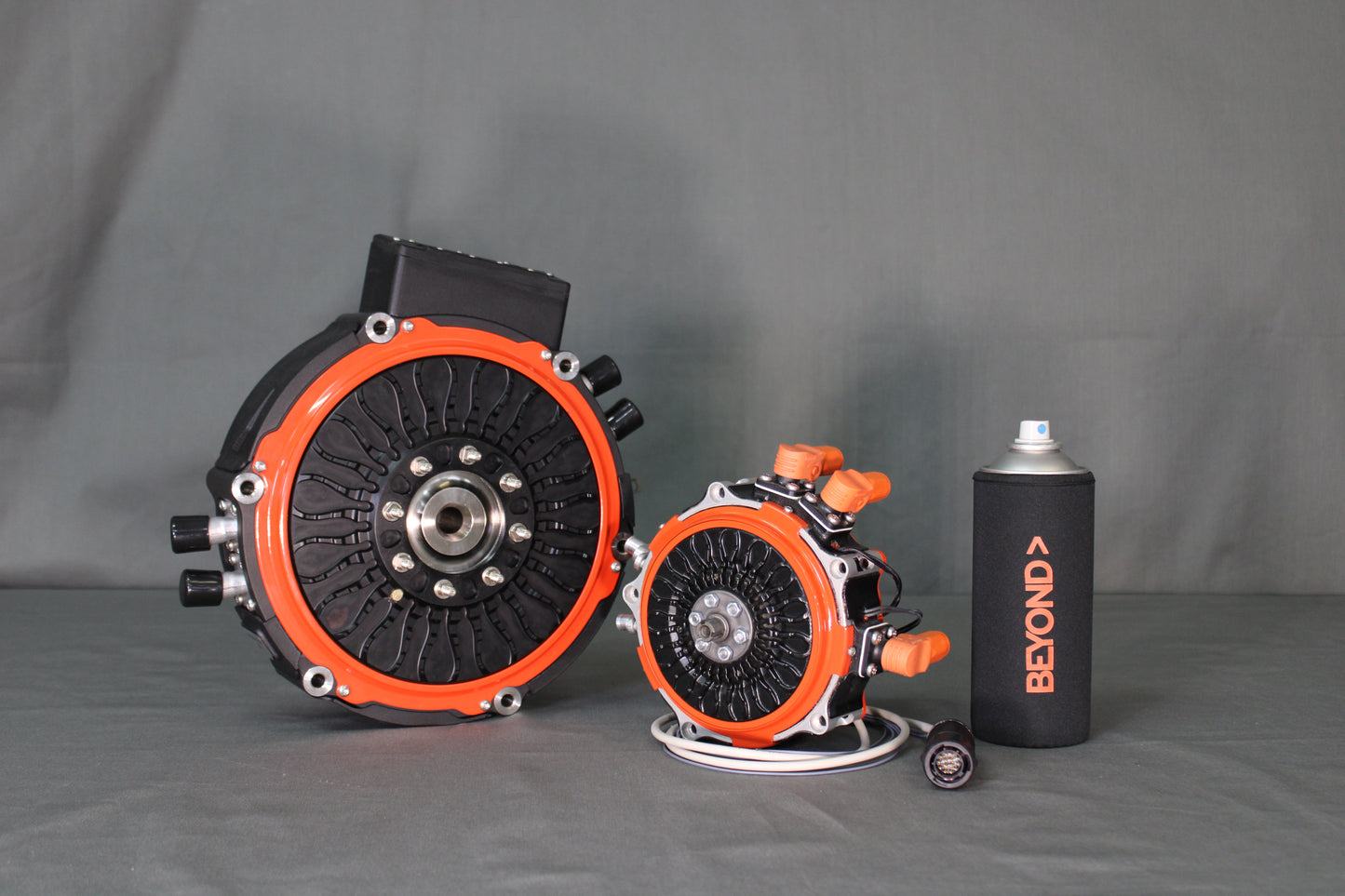

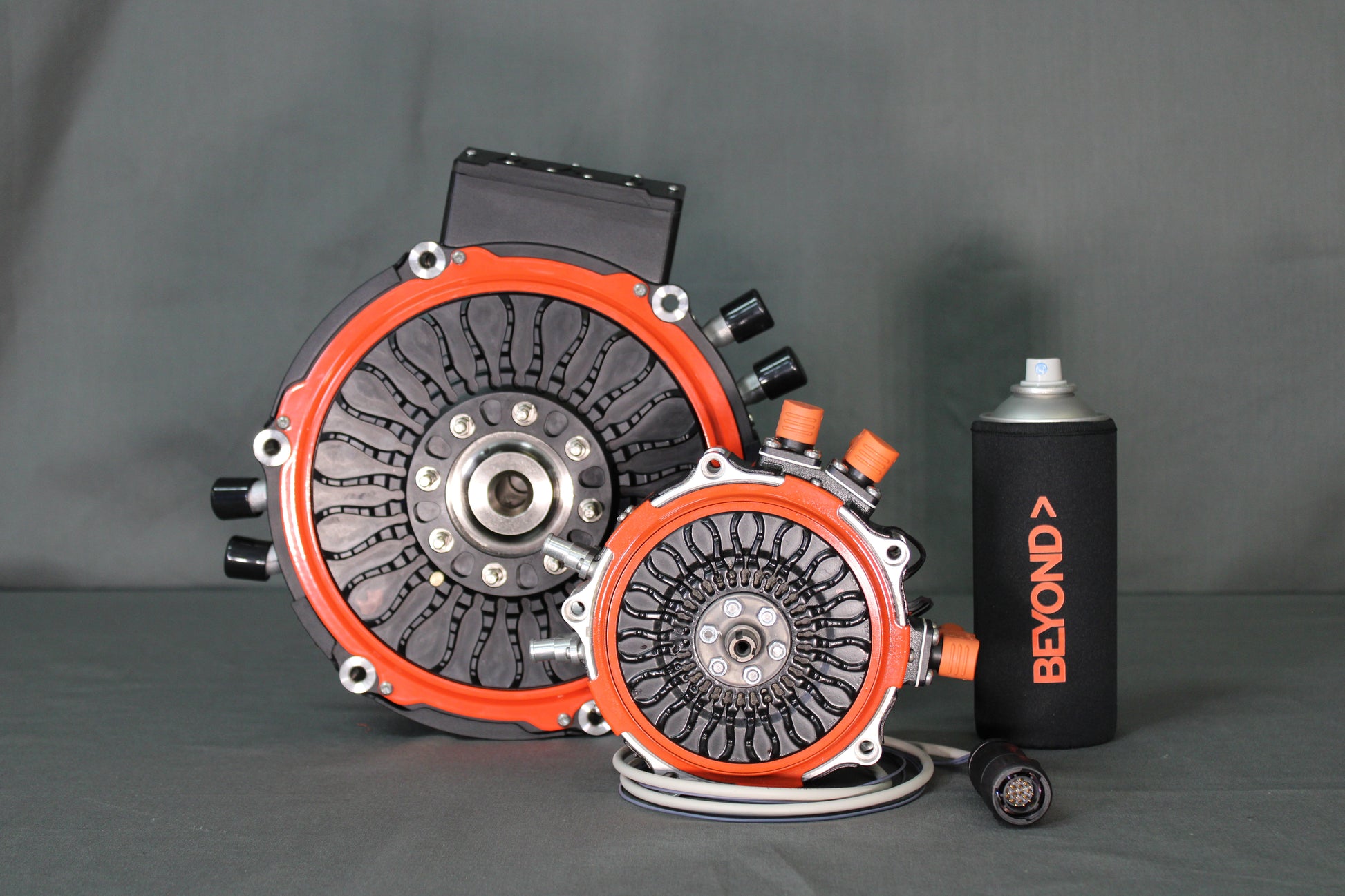

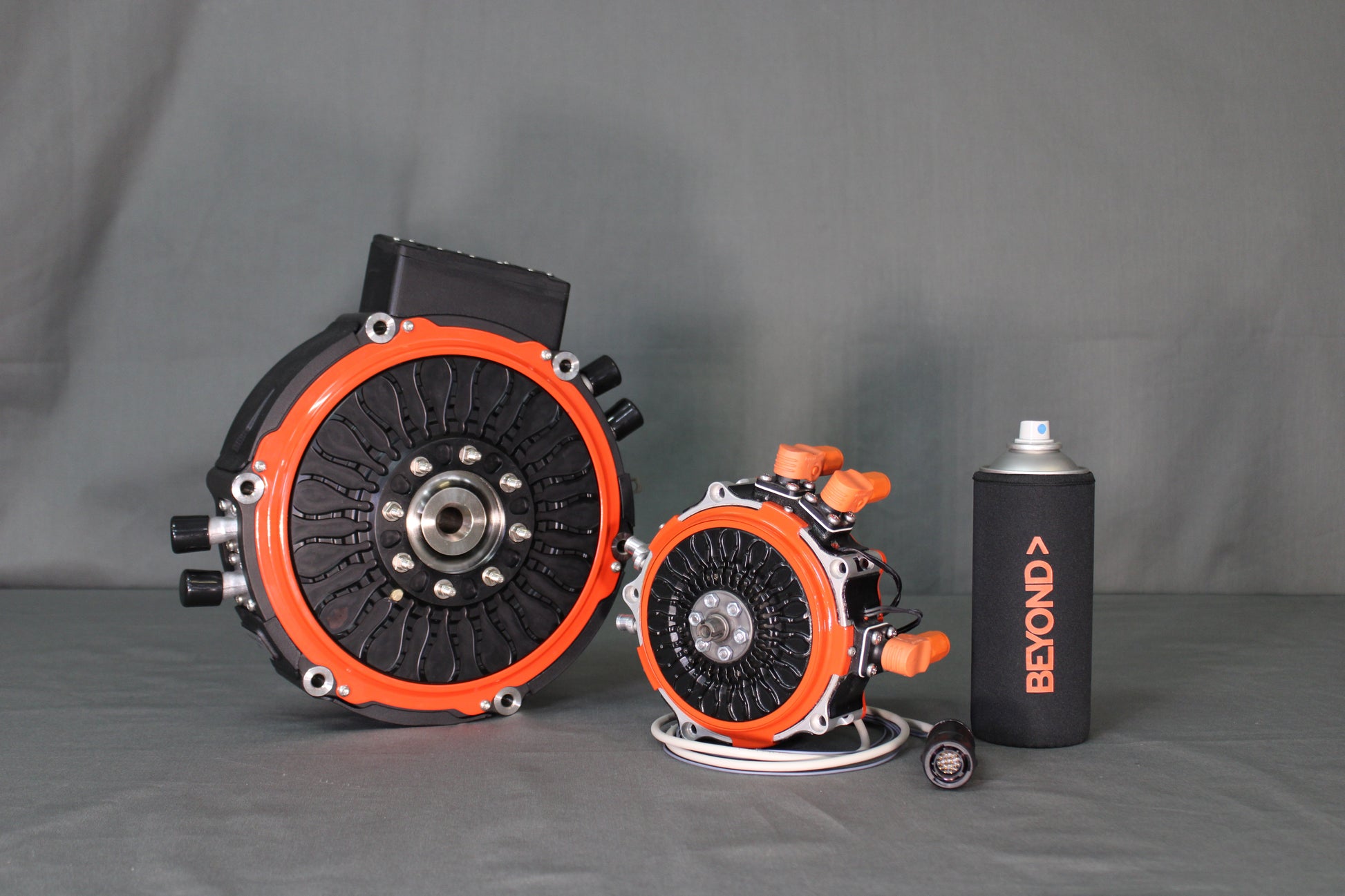

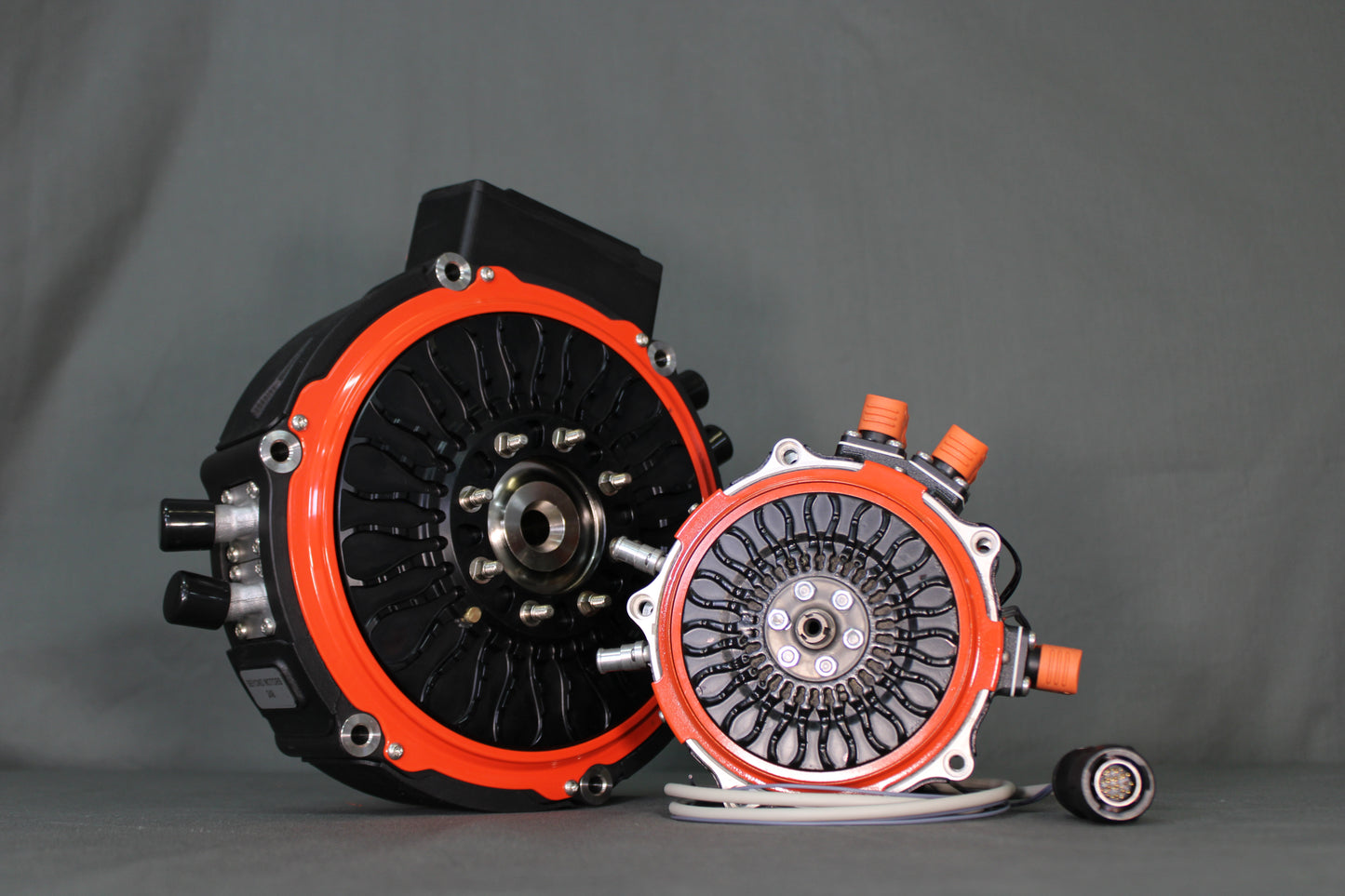

Beyond Motors AXM2

130 kW, 180 Nm peak @ 7500 rpm

75 kW, 120 Nm continuous @ 6000 rpm

14.5 kg fully enclosed motor with solid mounting bosses on outer casing.  No extra mounting provisions or enclosures are required.

300V, 550V, and 850V windings available.

Well suited to many vehicle applications, especially single motor FSAE and Formula Student racecars.

Motors are assembled to customer specifications, please message us for further discussion through the contact us page.  Pricing starts at $5800

Pair with your choice of inverter/controller.  We recommend the NX W90, contact us to discuss providing the inverter along with the motor.

Outside Dimensions: here

Data Sheet: here

CAD Download-Cable Lugs here

CAD Download-IP66 Connectors here
