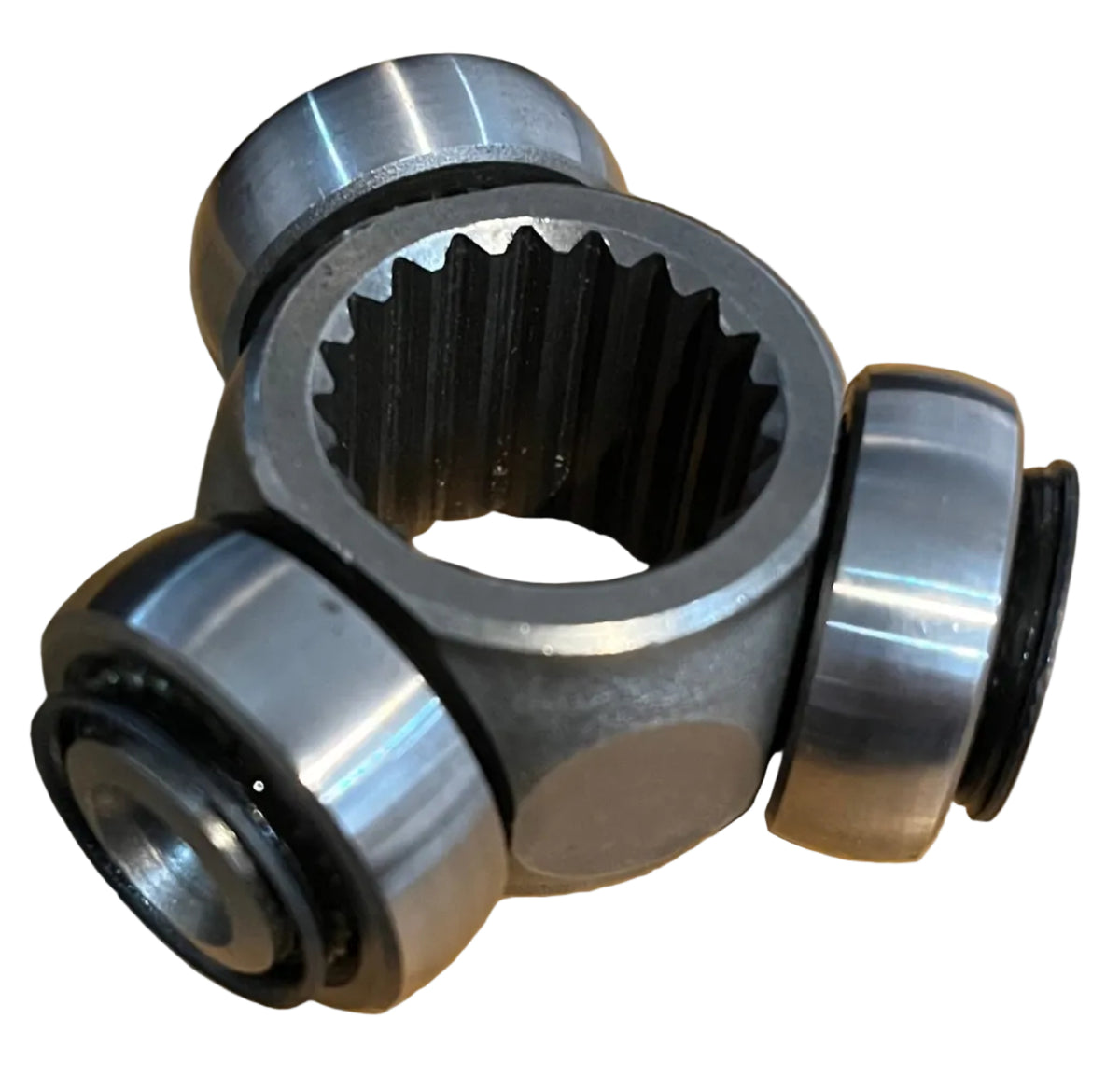

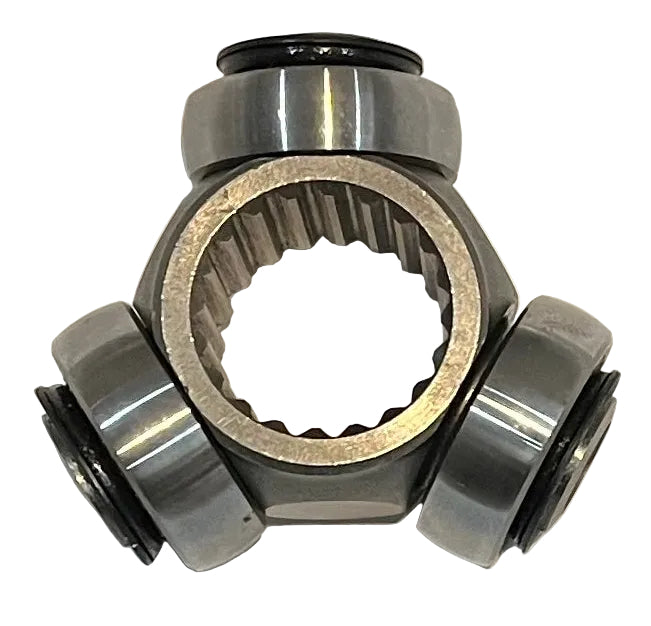

FSAE Tripod - 20 Tooth - 02002011

Taylor Race Standard Formula SAE tripod for the last 25+ years.  Hardened steel forged body and 52100 rollers.

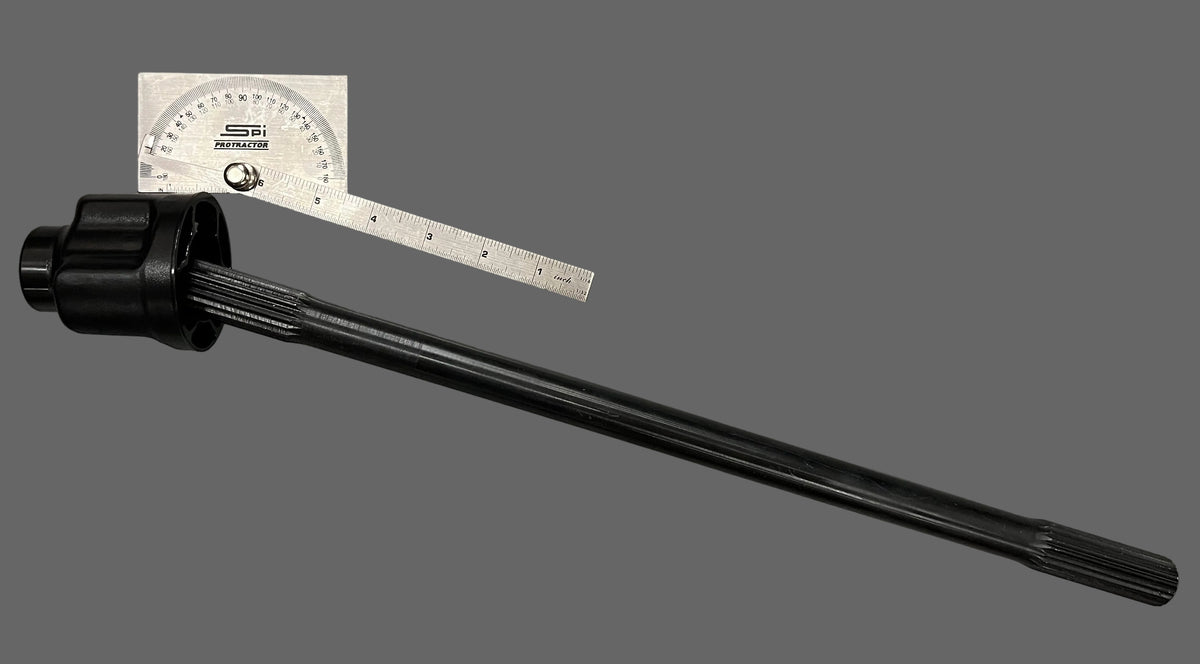

Spline is 20 teeth with 22mm major diameter.  Pair with our FSAE 20T driveshafts, stubs, tripod housings, and boots.  Max angle of ~18 deg.  Deeper plunge will reduce max angle.  Weighs 0.37 lbs (170g)

IGES File Download

CAD for machining your own housing
