MK3 Lightweight TRE Quaife ATB Chain Drive Differential for FSAE

Taylor Race Engineering Mk3 Differential: Unleash Peak FSAE Performance

The new Mk3 Differential is engineered to deliver an unparalleled competitive edge for your Formula SAE team. This isn't just a differential; it's a meticulously crafted system designed to optimize your car's handling, acceleration, and reliability on track.

Key Features & Advantages:

• Ultimate Tunability: Experience dynamic on-track tuning with TRE's new patent-pending external preload adjustability. Fine-tune your differential's behavior in minutes to optimize cornering, stability, and acceleration for any track condition or driver preference, all without disassembly.
• Adaptable Locking Behavior: Further refine your setup by easily swapping between our 3 different helical gearsets. Each set creates distinct locking characteristics, analogous to adjusting ramp angles on a clutch-type diff, allowing you to perfectly match your differential's response to your car and track.
• Revolutionary Fluid Tuning: Unlock maximum drive with our custom-blended non-Newtonian shear-thickening fluids. This advanced fluid dynamically increases locking under high shear rates (such as inside wheel lift), providing progressive, increased drive precisely when needed most. Eliminate single-wheel spin and maintain continuous power delivery for dominant corner exits.
• Lightweight & Robust: Achieve unparalleled agility with a significantly lighter design crafted from aerospace-grade 7075 Aluminum housings and durable hardened steel internals. Built for endurance, a robust 900 ft-lb (1220 Nm) torque capacity ensures unmatched reliability through every dynamic event.
• Precision Power Transfer: Our proven Geared ATB/Torsen Limited Slip technology provides smooth, progressive torque biasing, maximizing traction out of corners with less maintenance than traditional clutch-type differentials.
• Plug-and-Play Integration: The Mk3 arrives as a complete, race-ready system, including high-quality bearings and tripod housings.  Simply mount it in your chassis and go - saving your team invaluable build time and resources.
• Rapid Pitlane Serviceability: Perform full rebuilds and crucial adjustments without needing to remove the differential from its bearing mounts or loosening the chain! This unique feature dramatically cuts down on time and effort during testing and development tuning.

Why Choose the Mk3?

The Mk3 streamlines your build, enhances performance, and is backed by Taylor Race Engineering's decades of motorsport expertise.

Read our overview of Differentials here

Information PDF

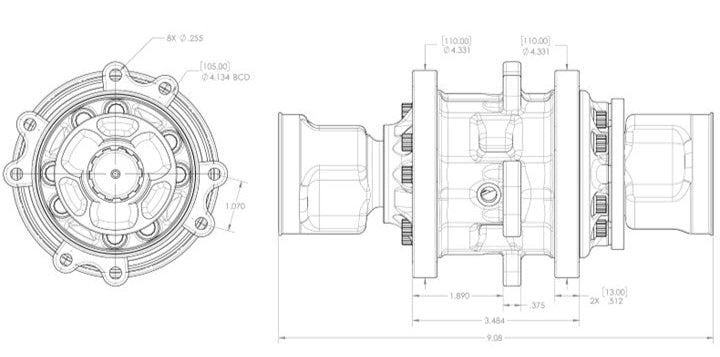

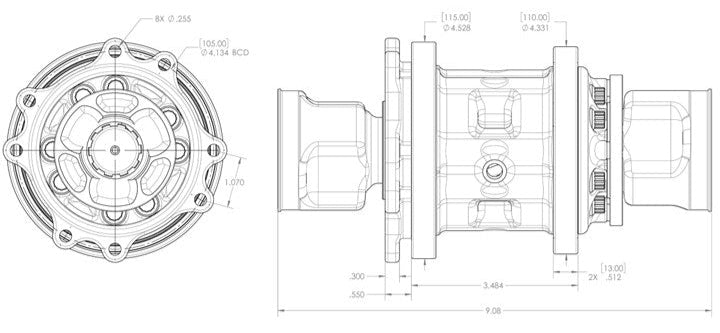

Packaging models downloadable below:

• Outboard Drive
• Center Drive
• Double Outboard Drive
• Center and Outboard Drive

Patent Pending
